| ID Code |
P6P, PMC (Lower Deck) |
| U.S. Domestic Code |
|
| Aircraft types and Main or Lower deck |
All 747's & 767*, A330 Lower Deck |
| Rate Class |
2BG |
| Internal Volume |
|
| Limiting Internal Dimensions |
|
| Maximum Gross Weight |
5035kg (11100lb) |
| Tare Weight (incl. net) |
110kg (242lb) |
| * Advance arrangements needed for carriage on 747 lower deck. |
|
|
| ID Code |

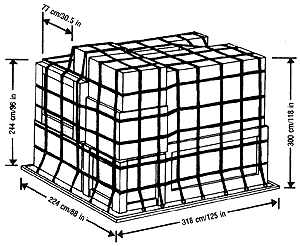

P6P, PMC (Main Deck) |
| U.S. Domestic Code |
M-1 (Main Deck) |
| Aircraft types and Main or Lower deck |
747 Freighter Main Deck * |
| Rate Class |
2H |
| Internal Volume |
|
| Limiting Internal Dimensions |
|
| Maximum Gross Weight |
6800 kg (15000 lb) |
| Tare Weight (incl. net) |
110kg (242lb) |
| *Contour applies to 747F side-door loader. On 747F nose-door loader max. height is 224cm/96in. |
|
|
| ID Code |

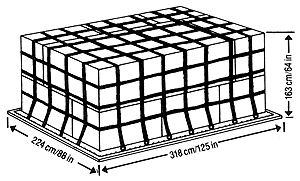

P1P, PAG, PAP, PAJ, P1G (Lower Deck) |
| U.S. Domestic Code |
LD-7 |
| Aircraft types and Main or Lower deck |
All 747's & 767 *, A330 Lower Deck |
| Rate Class |
5 |
| Internal Volume |
|
| Limiting Internal Dimensions |
|
| Maximum Gross Weight |
4626 kg (10200 lb) |
| Tare Weight (incl. net) |
110kg (242lb) |
| *This unit may also be loaded on the main deck of 747F. Max. gross weight is then 6800 kg/15000 lb. On 767, max. gross weight is 5035 kg/11100 lb. |
|
|
| ID Code |
P1P, PAG, PAP, PAJ, P1G (Main Deck) |
| U.S. Domestic Code |
M-1 |
| Aircraft types and Main or Lower deck |
747 Freighter - side door loading Main Deck * |
| Rate Class |
2C |
| Internal Volume |
|
| Limiting Internal Dimensions |
|
| Maximum Gross Weight |
6800 kg (15000 lb) |
| Tare Weight (incl. net) |
110kg (242lb) |
| ** Contour applies to 747F side-door loader. On 747F nose-door loader max. height is 224cm/96in. |
|
|
|
| ID Code |
P1P, PAG, PAP, PAJ, P1G (Main Deck) |
| U.S. Domestic Code |
M-1 |
| Aircraft types and Main or Lower deck |
747 Freighter - side door loading Main Deck * |
| Rate Class |
2C |
| Internal Volume |
|
| Limiting Internal Dimensions |
|
| Maximum Gross Weight |
6800 kg (15000 lb) |
| Tare Weight (incl. net) |
110kg (242lb) |
| ** Contour applies to 747F side-door loader. On 747F nose-door loader max. height is 224cm/96in. |
|
|
|
| ID Code |

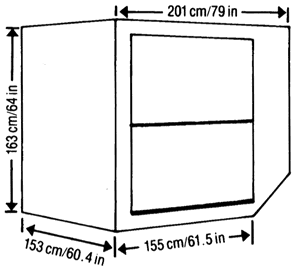

AVE, AKE |
| U.S. Domestic Code |
LD-3 |
| Aircraft types and Main or Lower deck |
All 747's & 767, A330 Lower Deck |
| Rate Class |
8 |
| Internal Volume |
4.3 m³ (153 cu ft) |
| Limiting Internal Dimensions |
140 x 147 x 152 cm (55 x 58 x 60 in) |
| Maximum Gross Weight |
1587 kg (3500 lb) |
| Tare Weight (incl. net) |
* |
| * Actual tare weights vary from 76 kg/165 lb to 81 kg/178 lb depending on manufacturer's models. |
|
|
|
| ID Code |

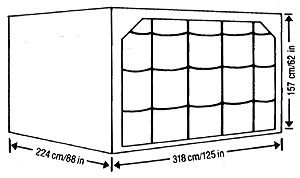

AA2, AAP |
| U.S. Domestic Code |
LD-9 |
| Aircraft types and Main or Lower deck |
All 747's & 767*, A330 Lower Deck |
| Rate Class |
5 |
| Internal Volume |
10.6 m³ (374 cu ft) |
| Limiting Internal Dimensions |
208 x 302 x 152 cm (82 x 119 x 60 in) |
| Maximum Gross Weight |
4626 kg (10200 lb) * |
| Tare Weight (incl. net) |
+ |
* This unit may also be loaded on the main deck of 747F. Max. gross weight is then 6800 kg/15000 lb. On 767, max. gross weight is 5100 kg/11243 lb.
+ Actual tare weights vary from 200 kg/441 lb to 272 kg/600 lb depending on manufacturer's models. |
|
|
|
| ID Code |

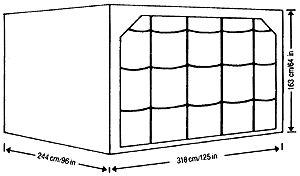

AMP + |
| U.S. Domestic Code |
|
| Aircraft types and Main or Lower deck |
All 747's & 767*, A330 Lower Deck |
| Rate Class |
2BG |
| Internal Volume |
11.4 m³ (403 cu ft) |
| Limiting Internal Dimensions |
229 x 302 x 152 cm (90 x 119 x 60 in) |
| Maximum Gross Weight |
5030 kg (10200 lb) * |
| Tare Weight (incl. net) |
266 kg (587 lb) |
* This unit may also be loaded on the main deck of 747F. Max. gross weight is then 6800 kg/15000 lb. On 767, max. gross weight is 5100 kg/11243 lb.
+ Advance arrangements needed for carriage on 747 lower deck. |
|
